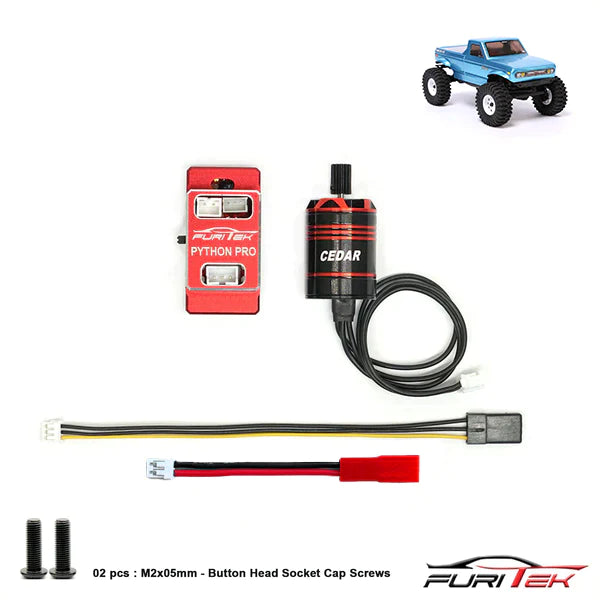

FURITEK TORPEDO BRUSHLESS POWER SYSTEM FOR REDCAT ASCENT-18

FURITEK TORPEDO BRUSHLESS POWER SYSTEM FOR REDCAT ASCENT-18

NOTE: Slight modification of the motor mount holes on the stock transmission may be required to get a proper mesh

PYTHON PRO ESC Features:

- FOC (Field-Orientated control) technology

- Live tunning on Furicar app

- Super slow and ridiculously smooth throttle control

- New firmware algorithm to consistently smooth up the start up to FOC stage

- Work with Brushed/Brushless motors (config via app, default is brushless)

- BIG BEC for power-hungry servos

- Mini size and light weight

- Super easy programming via App on both Android and iOS

- Real-time telemetry up to 10Hz

- Bluetooth module built-in so no longer a separate wires and bluetooth module controlled by Furicar App

- Waterproof and dustproof with an enclosing CNC aluminum case

- Circuit protection

- FREE lifetime firmware updates

PYTHON PRO Specifications:

- Supports 2-4S lipo batteries

- BEC: 5.5V/7.4V/8.4V 5A

- Constant current: 40A

- Burst current: 70A

- Built-in power switch

- Dimensions: 1.57x 0.78x 0.6 (inch), 40x20x15 (mm)

- Weight: 5.7g (0.2oz)

CEDAR motor Features:

- Special designed 12-Pole Inrunner brushless motor for most efficiency

- Waterproof design

- Dustproof design

- Small, compact, easy to be installed in tight spaces

- Stylish with aluminum case, anodized with red and black

- Super quiet, high torque, powerful and super slow speed yet tons of wheel speeds when needed

- Steel pinion included for REDCAT ASCENT-18 crawlers

- High purity and higher temperature copper windings -lower copper losses, very good heat dissipating-maximizes efficiency.

- Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency. High RPM ABEC5 bearings.

- Precision balanced rotor, smoothness for best reliability, and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can.

- Precision engineered for maximum energy conversion

- All hardware included

CEDAR motor Specifications:

- Motor type: Inrunner

- KV: 3456KV­­

- No-load current @10V: 07A

- Power: 120W

- Battery: 2-3S Lipo

- Resistance: 0.17Ohm

- Slot/Pole: 12-Pole

- Motor size: 18x25mm diameter (0.7 x 1inch)

- Weight: 20g (0.7oz)

Extra requirement:
- Require external RX/TX. If you want to run with Stock TX. Let use SKU: FUR-2525 or FUR-2530
