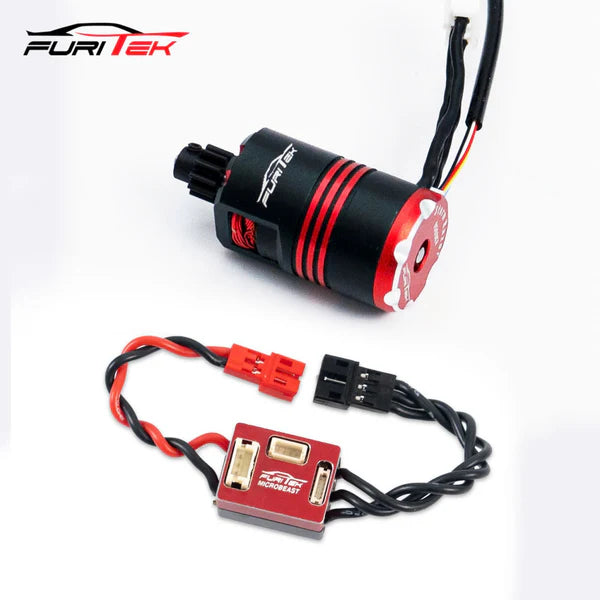

FURITEK GRASSHOPPER Brushless Sensored ESC/Motor Power System PLUG&PLAY FOR LOSI 1/24 MICRO-B
FURITEK MICROBEAST ESC WITH WIRELESS MODULE:
Sensored/Sensorless Operation: Supports both sensored and sensorless modes, providing flexibility and optimal performance for different driving conditions.
Compact and Lightweight: Weighing only 7.6 grams and measuring 18x14x9.5 (mm), the MICROBEAST ESC is designed to be small and light, making it easy to install without adding significant weight to your RC car.
Battery Support: Compatible with 2S LiPo, plug&play with stock battery
Support Wireless Setup Module Allows for convenient wireless programming and real-time adjustments via the Furicar App, available on both Android and iOS.
Multiple BEC Output Levels: Offers selectable BEC output voltages of 5.5V, 7.4V at5A, making it suitable for various types of servos.
Integrated Power Switch: For ease of use and convenience, the MICROBEAST ESC includes a built-in power switch.
High Current Handling: Capable of handling a constant current of 25A and a burst current of 50A
Specifications:
Battery Support: 2S LiPo batteries
BEC Output: 5.5V/7.4V,5A
Constant Current: 25A
Burst Current: 50A
Built-in Power Switch: Integrated for convenience
Dimensions: 0.71 x 0.55 x 0.37 (inch), 18.1 x 14 x 9.5 (mm)
Weight: 7.6 grams (0.27oz)
Features:
Support Sensored/Sensorless 25A/50A ESC
Live tunning on Furicar app
Super ridiculously smooth throttle control
Mini size and light weight
Super easy programming via App on both Android and iOS
Real-time telemetry up to 10Hz
FREE lifetime firmware updates
Advantages:
Plug&Play: Just buy it, plug it in, and use it—no soldering skills required.
Very Compact and Lightweight: The MICROBEAST ESC’s small size and light weight make it easy to install and ideal for maintaining the agility of your RC car.
High Current Capability: Handles high currents without the need for a cooling fan, ensuring reliable performance under demanding conditions.
Versatile Operation: Compatible with both sensored and sensorless motors, offering flexibility for different RC setups.
Multiple BEC Voltage Options: Provides selectable BEC output levels to match various servo requirements, enhancing compatibility and performance.
FURITEKSTORM RAZOR SENSORED MOTOR:
Motor Specifications:
Motor Type: Sensored
Motor Kv: 9500
Battery: 2S
Resistance: 0.042ohm
Max Current: 8A
Slot/Pole: 12 slot/4 pole
Shaft: 2*10mm
Motor Features:
Sensored 4-pole hi-torque motor design.
High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency.
Super thin stator laminations---lower eddy losses---maximizes efficiency. Japanese NMB --High RPM ABEC5 bearings. Precision balanced rotor, smoothness for best reliability and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.

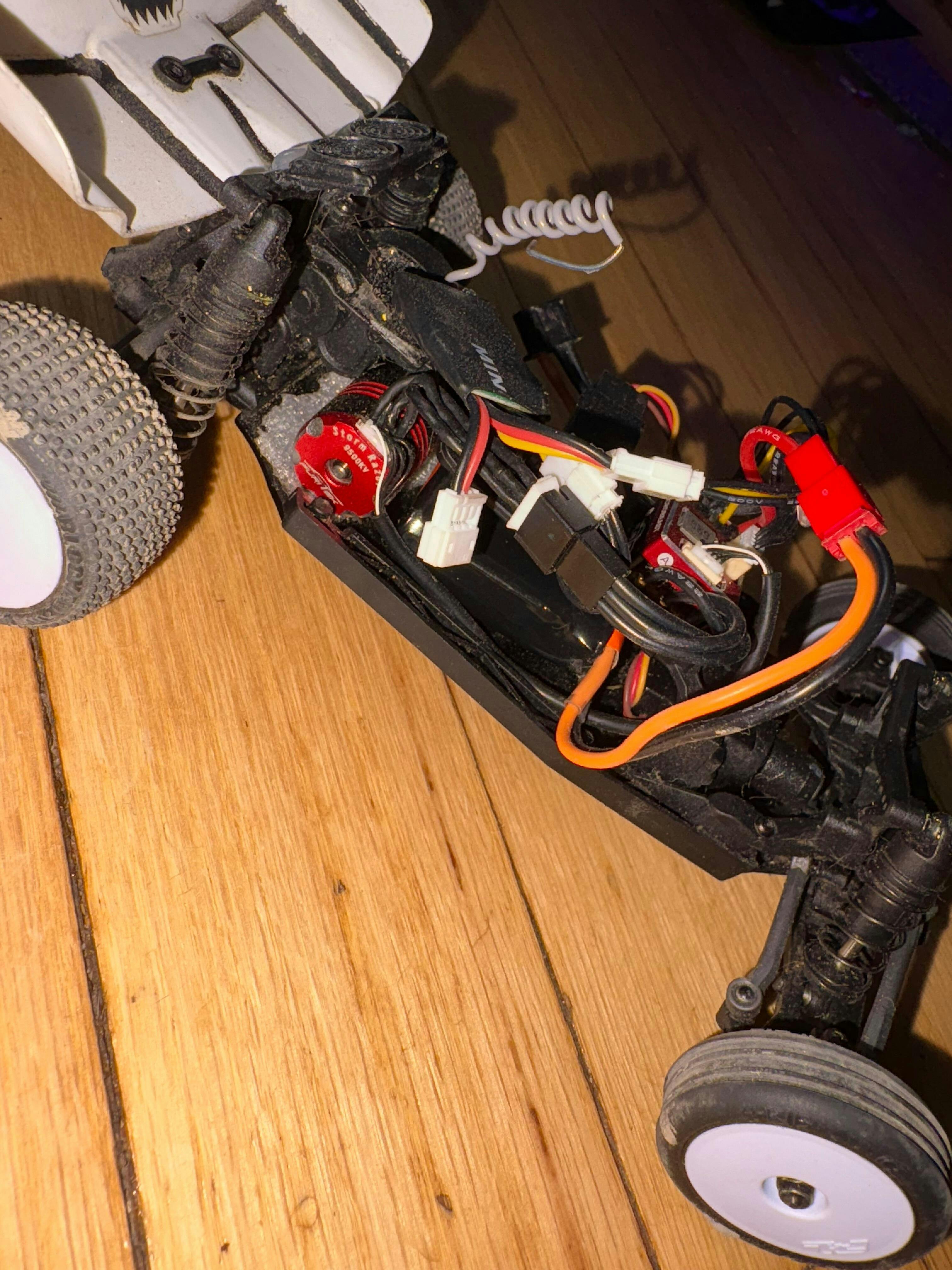

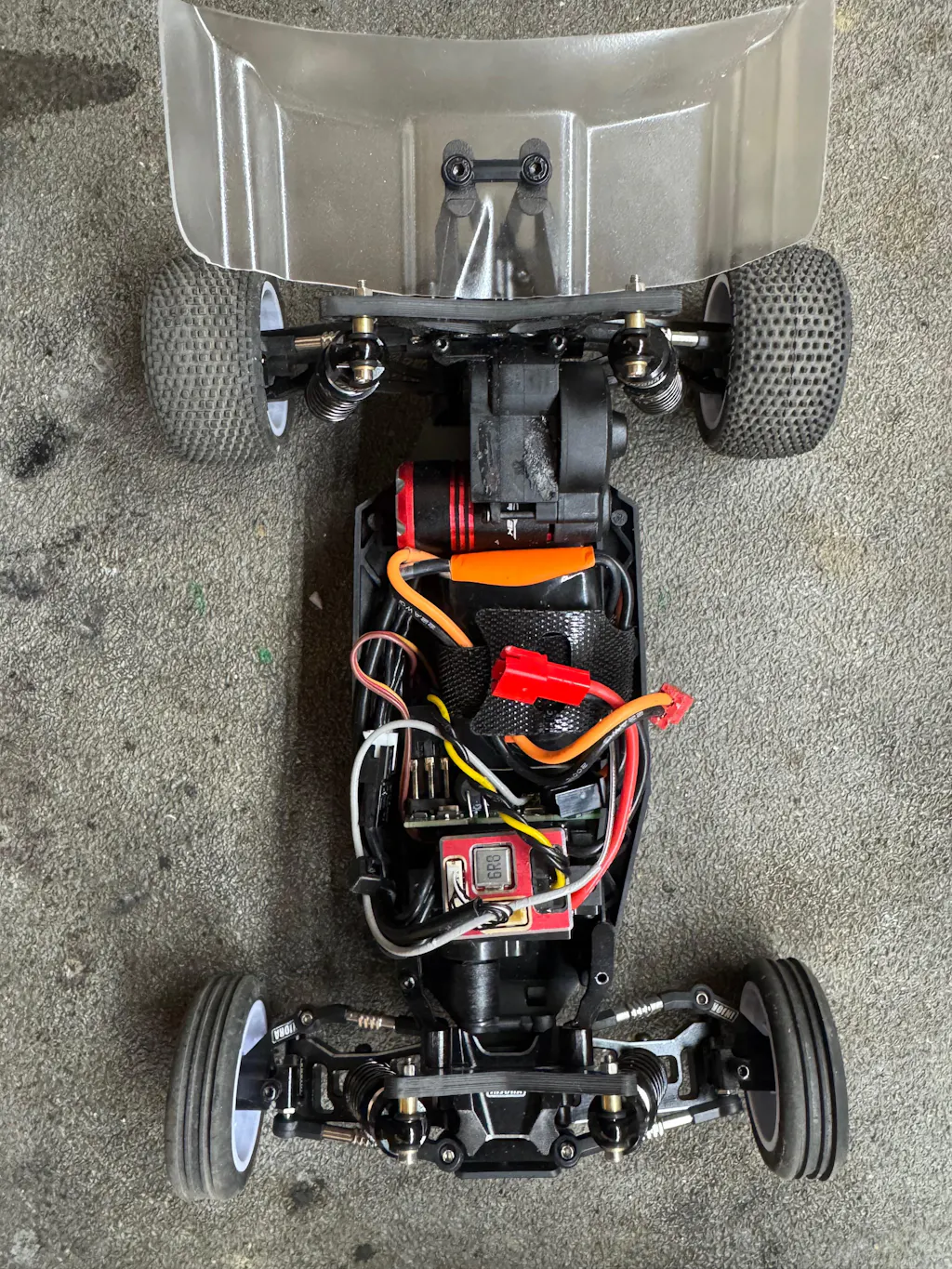

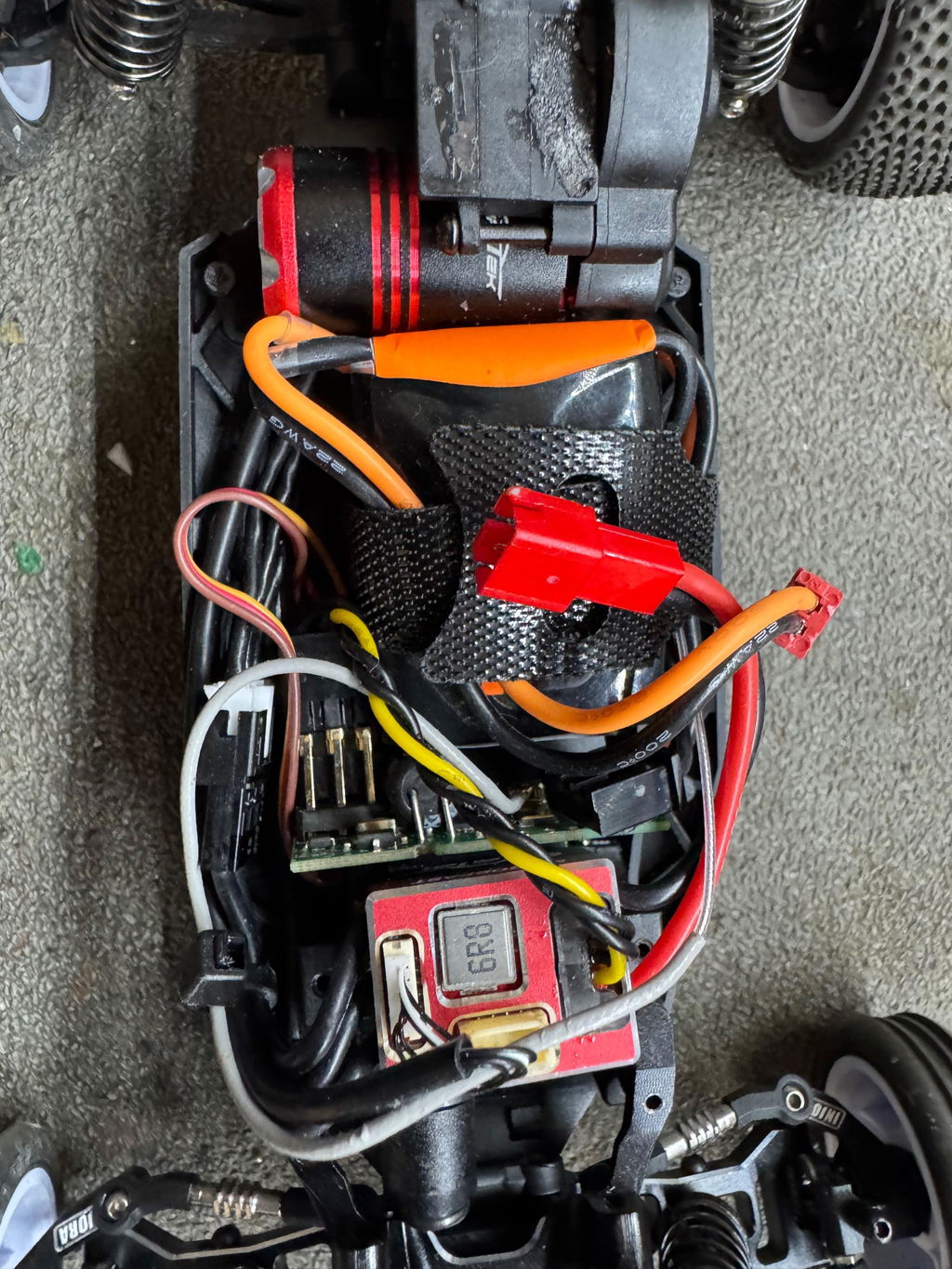

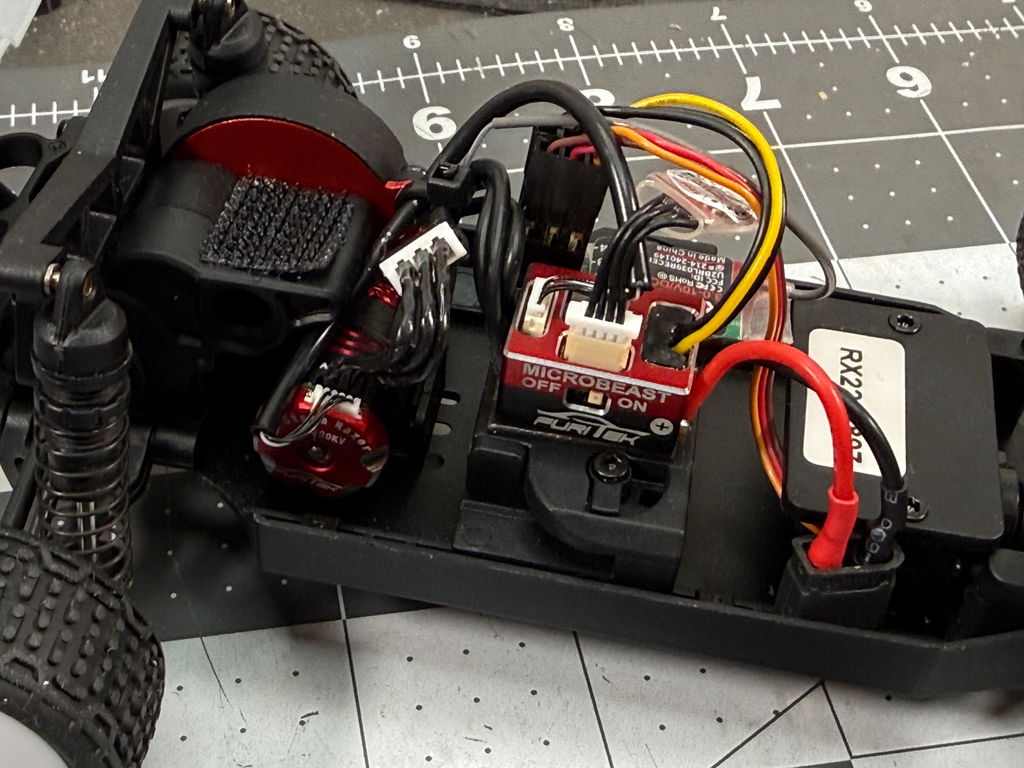

I have waited 2 weeks after getting this combo for my Micro B because I have been waiting on a receiver that would fit in it. I wanted to install the Gripor receiver/transmitter combo but couldn’t get my hands on one. Finally was able to do the install last night and I couldn’t be happier. I did have to make a hole in the spur gear cover because the pinion was rubbing on it, which is no big deal to me. I love Furitek electronics.
T
Terrance Dukes
Noice

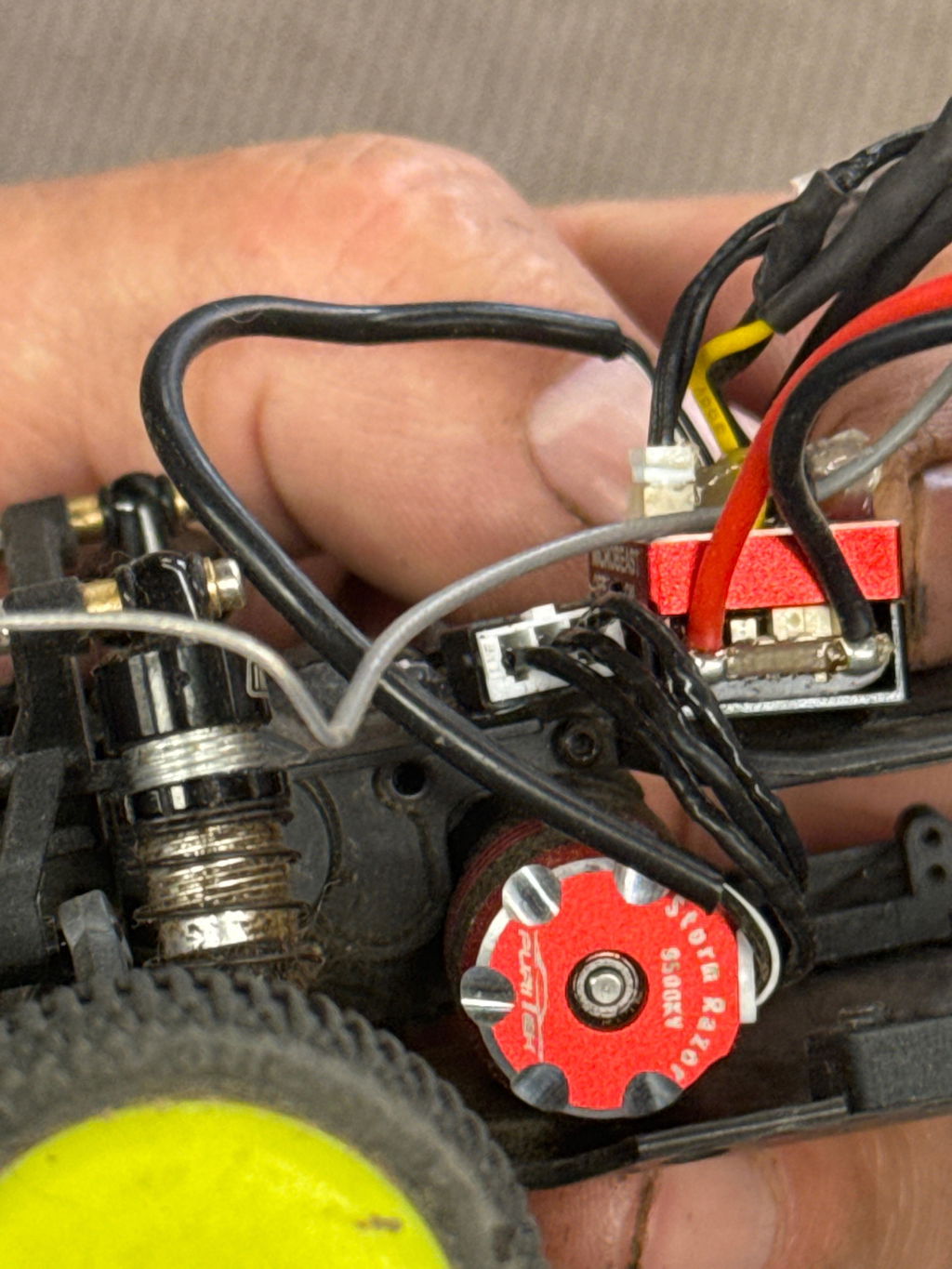

Perfect fit now for some proper gears the grub screw in my pinion is stripped and stuck on the pole (ND) but it’s perfect
R
Ryan white
Peppy lil thing
Super smooth. And very powerful. Definitely have to glue the tires.
